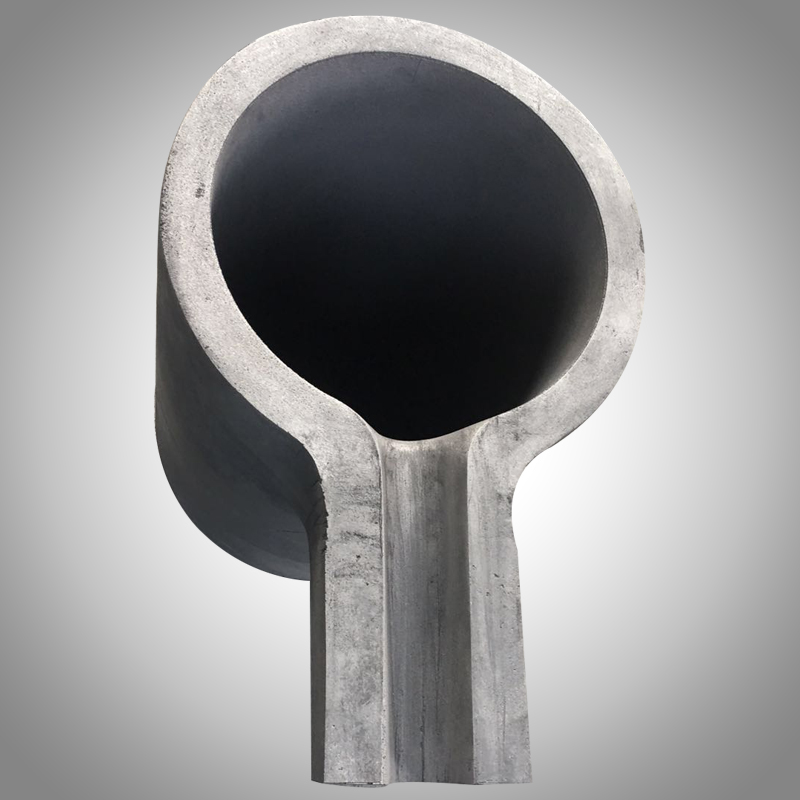

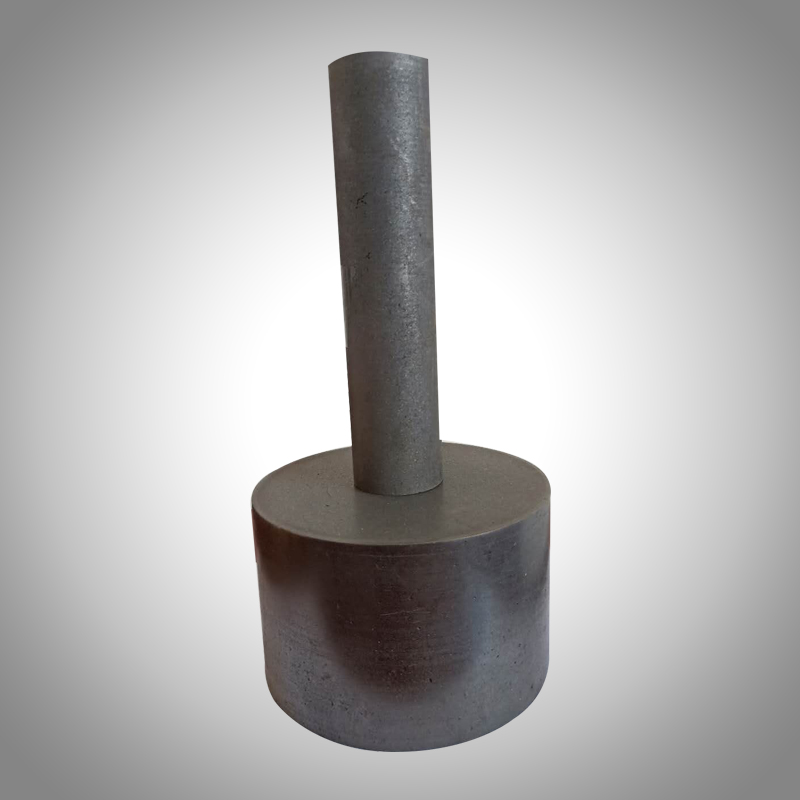

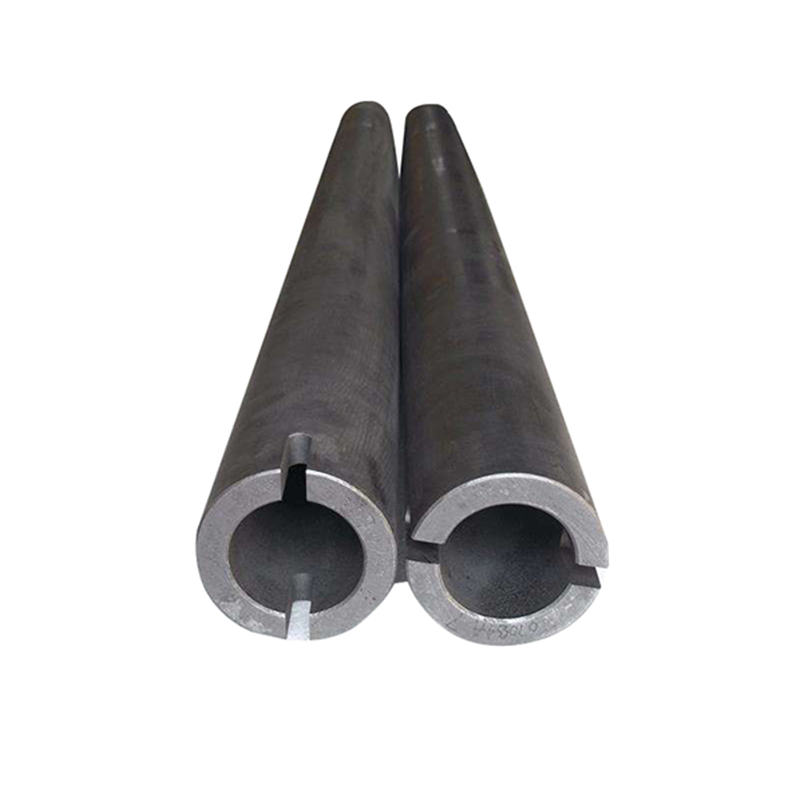

graphite special-shaped parts

Our company produces various sizes and shapes of the special-shaped graphite products, As a professional manufacturer of graphite parts, we have specialized in machining graphite over 35 years. we are providing various kinds of graphite parts, such as graphite dies, moulds, rods and plates, carbon bushings, graphite heaters, crucibles and other graphite components as per the customers’ requirements. welcome to consult!


Details

Our company produces various sizes and shapes of the special-shaped graphite products, As a professional manufacturer of graphite parts, we have specialized in machining graphite over 35 years. we are providing various kinds of graphite parts, such as graphite dies, moulds, rods and plates, carbon bushings, graphite heaters, crucibles and other graphite components as per the customers’ requirements. welcome to consult!

Features
- Fine grain
- Homogeneous structure
- High density
- Excellent thermal conductivity
- High mechanical strength
- Proper electrical conductivity
- Minimum wettability to molten metals
- Hard surface and good flexural strenght
- Resistance to chemical erosion and thermal shock.

Physical and chemical index



Fine-grain Specialty Graphite FXG-1 Fine-grain Specialty Graphite FXG-2
Item Unit Guarantee value Typical value Guarantee value Typical value
Max grain size mm 0.8 0.8 0.8 0.8
Bulk density g/cm3 ≥1.70 1.73 ≥1.73 1.76
Specific resistance μΩ.m ≤8.5 7.5 ≤8.0 7
Bending strength MPa ≥10.0 11 ≥12.0 12.5
Compressive strength MPa ≥24.0 27 ≥31.0 34
Thermal Condcutivity W/(m.k) ≥120 150 ≥130 160
C.T.E.(100-600) °C 10-6/°C ≤2.5 2.2 ≤2.5 2.1
Ash content % ≤0.3 0.09 ≤0.3 0.09



Item Unit Guarantee value Typical value Guarantee value Typical value
Max grain size mm 2 2 2 2
Bulk density g/cm3 ≥1.58 1.6 ≥1.70 1.75
Specific resistance μΩ.m ≤11.5 10.5 ≤8.5 7.5
Bending strength MPa ≥6.0 6.5 ≥9.0 9.5
Compressive strength MPa ≥18.0 18.5 ≥30.0 31
Modulus of elasticity GPa ≤9.3 7.5 ≤12.0 9.5
C.T.E.(100-600) °C 10-6/°C ≤2.5 2.4 ≤2.5 2.3
Ash content % ≤0.3 0.09 ≤0.3 0.09

High pure graphite



high pure graphite
Item Unit baked twice baked three time baked four times
impregnated once impregnated twice Impregnated three times
grain size mm ≤325mesh ≤325mesh ≤325mesh
Bulk density g/cm3 ≥1.68 ≥1.78 ≥1.85
Specific resistance μΩ.m ≤14 ≤14 ≤13
Bending strength MPa ≥25 ≥40 ≥45
Compressive strength MPa ≥50 ≥60 ≥65
Ash content % ≤0.15 ≤0.1 ≤0.05

Isostatic graphite



Item Unit Isostatic graphite
grain size μm 5-22
Bulk density g/cm3 1.75-1.85
Specific resistance μΩ.m 10-15
Bending strength MPa ≥40
Compressive strength MPa ≥70
Shore hardness ≥5
C.T.E.(100-600) °C 10-6/°C 3.2-5.2
Modulus of elasticity GPa 9.5-12.5
